When it comes to rigging a boat, every connection matters. At Black Label Marine Group, we see hundreds of boats pass through our rigging department each year — and while every boat is different, we consistently see the same rigging mistakes being made over and over.
Whether you’re buying a new boat or upgrading your current setup, here are the three most common boat rigging mistakes we fix — and how we do it right the first time.
1. Undersized or Incorrect Wiring
Today’s boats are running more technology than ever before:
- Dual GPS/chartplotters
- Live sonar systems
- High-powered trolling motors
- Advanced marine audio systems
- Power-Poles and shallow water anchors
- LED lighting systems

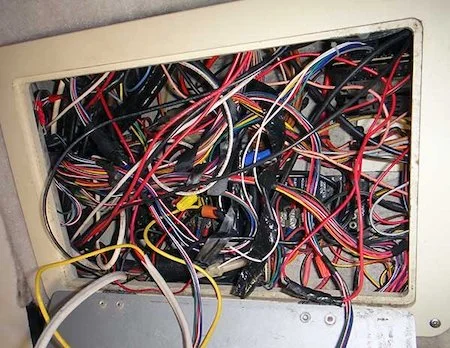

Most factory and DIY installs fall short when it comes to proper wire sizing and routing. Using undersized wire can cause dangerous voltage drops, performance issues, overheating, and even electrical fires.
At Black Label Marine Group, every wiring run we install uses:
- Marine-grade, tinned copper wire
- Correct gauge sizing for each circuit load
- Heat shrink connectors for sealed, corrosion-resistant joints
- Strategic routing to prevent chafing and minimize interference
Safe wiring equals safe boating. If your boat’s electronics aren’t performing as expected, improper wiring may be the culprit.
2. Inadequate Battery Systems
The more equipment you add, the more critical your battery management becomes. Many boats show up with far too few batteries or poorly isolated systems that can’t handle the demands of modern electronics.
Common battery-related rigging mistakes include:
- Using the same house battery to power trolling motors and electronics
- Lack of isolation switches or battery management systems
- Insufficient amperage to run high-draw systems like live sonar or multi-amp stereo setups
- Inadequate onboard charging systems

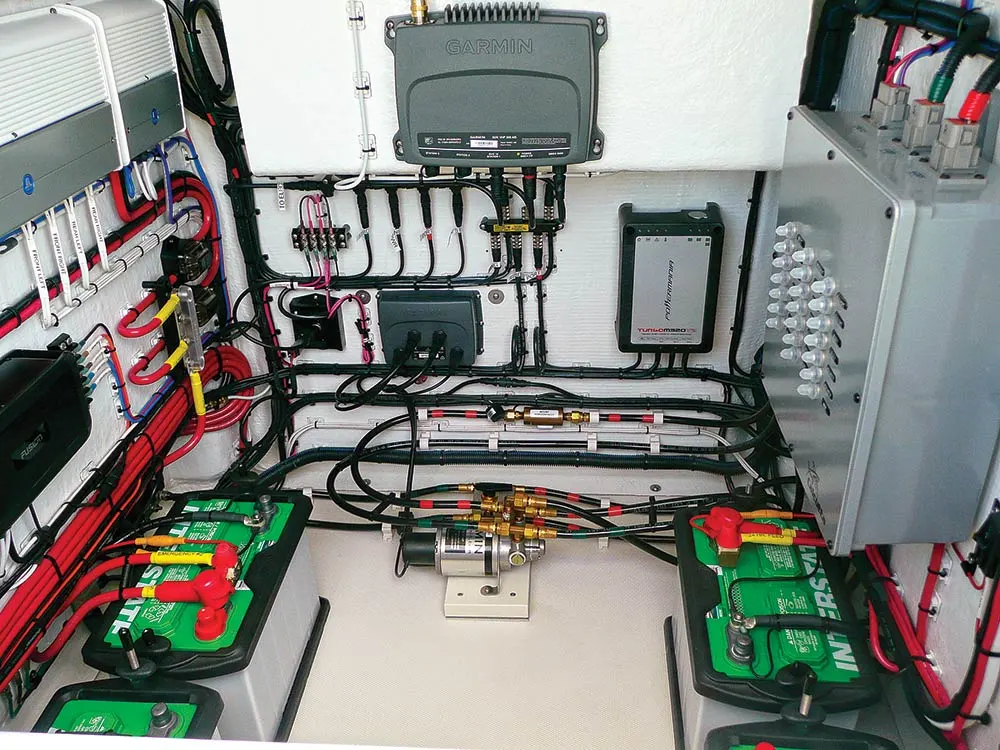

At Black Label Marine Group, we design complete battery banks to support your boat’s specific load requirements, including:
- Dedicated starting and house batteries
- Dual or triple trolling motor banks
- Onboard chargers
- Lithium or AGM high-capacity options
- Fully isolated circuits for maximum reliability
When properly rigged, your electronics, trolling motor, and outboards will have reliable power all day long — no more dead batteries cutting your trip short.
3. Poor Fuse Protection & Circuit Layout
One of the most dangerous boat rigging mistakes we see is the lack of proper fuse protection. Many boats have high-current accessories wired directly to batteries without circuit breakers or fuses.
Why proper fuse layout matters:
- Prevents short circuits from damaging expensive electronics
- Protects wiring from overheating
- Makes future service and troubleshooting easier
- Keeps your entire electrical system safe

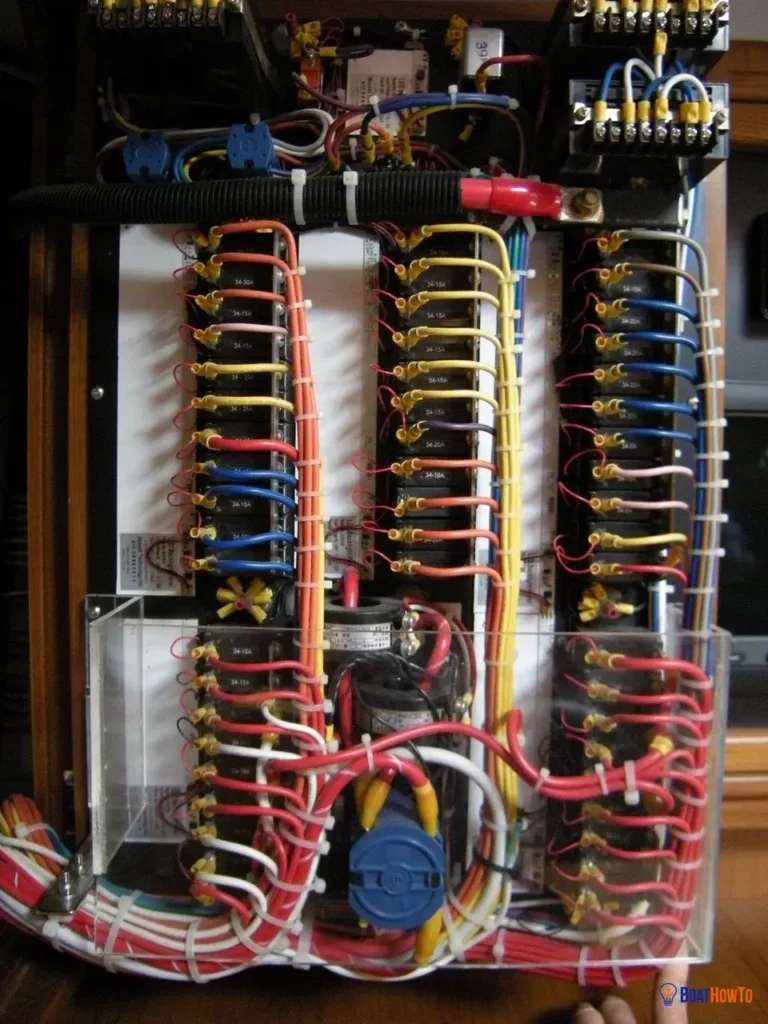

Our expert rigging team designs fully mapped, labeled, and protected circuits for every system we install. We ensure every accessory has the correct fuse or breaker size, and that your entire system is built to NMMA-certified standards.
Why Proper Rigging Matters
Poor rigging leads to:
- Electrical failures offshore
- Dead batteries on the water
- Glitchy electronics
- Shortened equipment lifespan
- Safety hazards for you and your passengers
At Black Label Marine Group, we approach every install like it’s our own boat. Every system is properly fused, properly powered, and fully water-tested before it leaves our shop.
Schedule Your Boat Rigging Consultation
Whether you’re building a new boat from scratch or upgrading your current rig, proper rigging makes the difference between frustration and flawless performance. Our certified rigging technicians specialize in:
- Garmin, Simrad & Lowrance electronics installs
- Power-Pole shallow water anchor systems
- Trolling motor installs
- Mercury Marine & Yamaha integrations
- Optimus Joystick & Helm Master EX controls
- Advanced battery systems and wiring
- Complete dash reconfigurations and custom panels
Book your expert rigging consultation today:
blacklabelmarinegroup.com/service-department
FAQ: Boat Rigging Mistakes
Undersized wire gauge and improper connectors that can’t handle modern electrical loads.
If your electronics cut out, trolling motor voltage drops, or you experience power issues after a long day, your battery setup is likely undersized.
Yes. We routinely correct rigging mistakes from dealer installs or previous owners.
Absolutely. Every electrical device should be properly fused to prevent damage or fire.
Yes. We design full system layouts tailored to your exact boat, usage, and future expansion plans.
